Floor fan coil

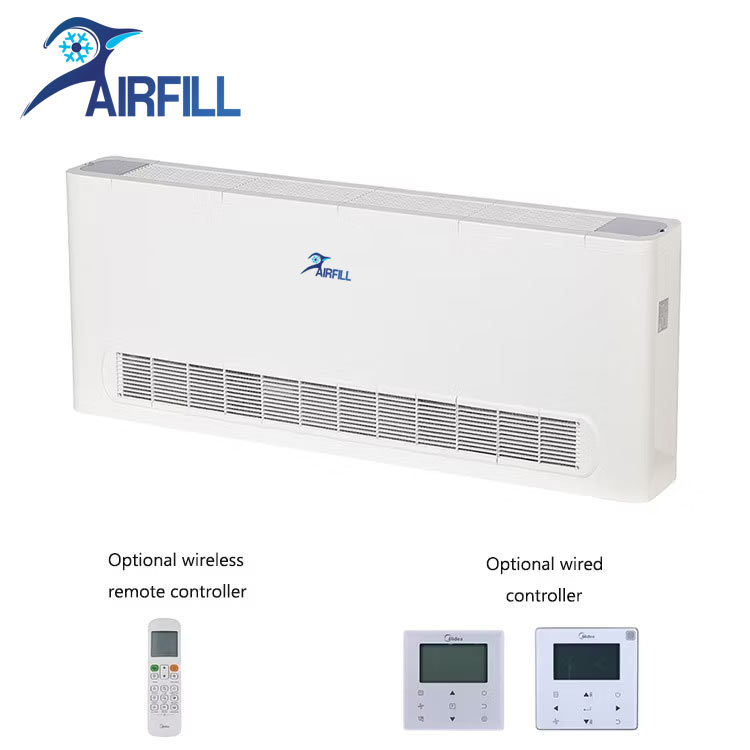

info Floor fan coil model 900/300 CFM licensed by Midea.
done Airflow capacity ranges from 150 CFM to 900 CFM.
done Suitable for various spaces such as apartments, hotels, schools, offices, etc.
done Use of aluzinc blower for quieter operation and more comfort.
done Air intake from the front and discharge from above.
done Slim and beautiful body design.
done Quiet and low-noise operation.
done Energy-efficient consumption.
done Fast and easy installation.
done Two-year warranty on Airfil electrical systems.
done 15 years of service and support.

  • The unique shape of the air outlet reduces air turbulence and sound level.
    Three-speed fan control.
    Remote control is an option.
    The floor-mounted type is the best choice for rooms where installation of the unit is only possible on the ground. However, the unit can also be placed on the wall; there is an option to connect pipe lines from the back.
    Wall installation simplifies maintenance and cleaning indoors: in this case, dust and dirt do not accumulate under the device.
    All metal components are made of strong galvanized steel with anti-corrosion coating.
    In the MKH1 and MKH2 blocks, the upper grille is convex; in MKF4 and MKF5, it is flat and sectional, which simplifies cleaning.

  • The ground fan coil is a member of the fan coil family, which, like other members of this family, has multiple functions including temperature control, humidity control, air refreshing, and circulation. The ground fan coil uses a fan to draw air from the environment through an inlet located at the front or back of the unit. This air passes over a coil and is heated or cooled in this stage. The heated or cooled air is then distributed into the surrounding space through an outlet located at the top of the ground fan coil. Ground fan coils are available in two types: two-pipe and four-pipe. Two-pipe: In this type of fan coil, there is a single coil that can receive either hot or cold water. Therefore, the two-pipe fan coil can only operate in either heating or cooling mode, and simultaneous operation in both modes is not possible. Four-pipe: In this type of fan coil, there are two separate coils for hot and cold water. Consequently, the four-pipe fan coil can perform heating and cooling simultaneously. The fan coil (FCU) includes a fan that draws air into a space and then blows it through a cooling or heating system. The air that exits the ground fan coil is usually warmer or cooler than before. The most common application of this type of fan coil is in commercial and office buildings. However, they can also be used in small spaces and locations that require individual control. Ground fan coils, like other types of fan coils, also have two types: two-pipe and four-pipe. The two-pipe ground fan coil will have only one outlet temperature at any given time; because it has one inlet and one outlet pipe for...


The Airfill air conditioning group is known as a familiar and leading name in refrigeration and air conditioning systems in the field of designing and manufacturing cooling and heating equipment.

The Airfill Air Conditioning Group considers sales only as the first step in the strategy and commitment it has adhered to since the beginning of its activities.
