Concealed ceiling fan coil

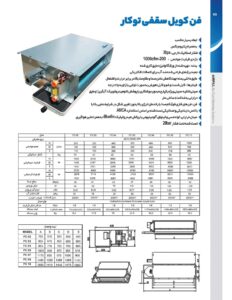

info Ceiling Concealed Fan Coil Model 300/1000 CFM
done Fan static pressure can be selected as 30 Pascal and 12 Pascal
done Choice of preferred path for pipe connection
done Very suitable dimensions along with plenum box
done Filters are washable and can be replaced with a hinged angle of 45 degrees
done Low energy consumption fan motor with high efficiency and resistant to heat and humidity
done Body made of insulated galvanized sheet
done Energy-efficient consumption
done Quiet and powerful
done Two-year warranty on Airfill electrical systems
done 15 years of service and support

  • Very suitable dimensions along with a plenum box
    External static pressure B30pa
    Airflow capacity range B1000cfm-200
    Body made of insulated galvanized sheet
    Waterproof electrical boxes designed for electrical connections
    Internal body insulation to reduce noise and high resistance to heat and ignition
    Washable and replaceable filters with a hinged design at a 45-degree angle
    Drain pan, special seamless pan with a nano hydrophobic (water-repellent) coating and thermal insulation of 1 centimeter thickness
    Metal fans with ultra-low noise and high energy efficiency, tested for dynamic and static balance under high temperature conditions according to AMCA standards
    Copper tube heat exchanger with aluminum fins featuring hydraulic coating (Bluefin) along with a tested venting valve under pressure B20bar.

  • The static pressure of the fan can be selected as 30 Pascal and 12 Pascal. Return air filter and standard plenum air. Selection of desired path for duct connection. Three-row coil with a unique circuit. Energy-efficient fan motor with high efficiency and resistance to heat and humidity. Fan made of ABS with high resistance to heat and low noise.
